General description

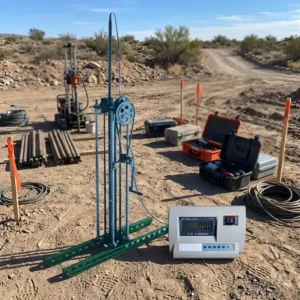

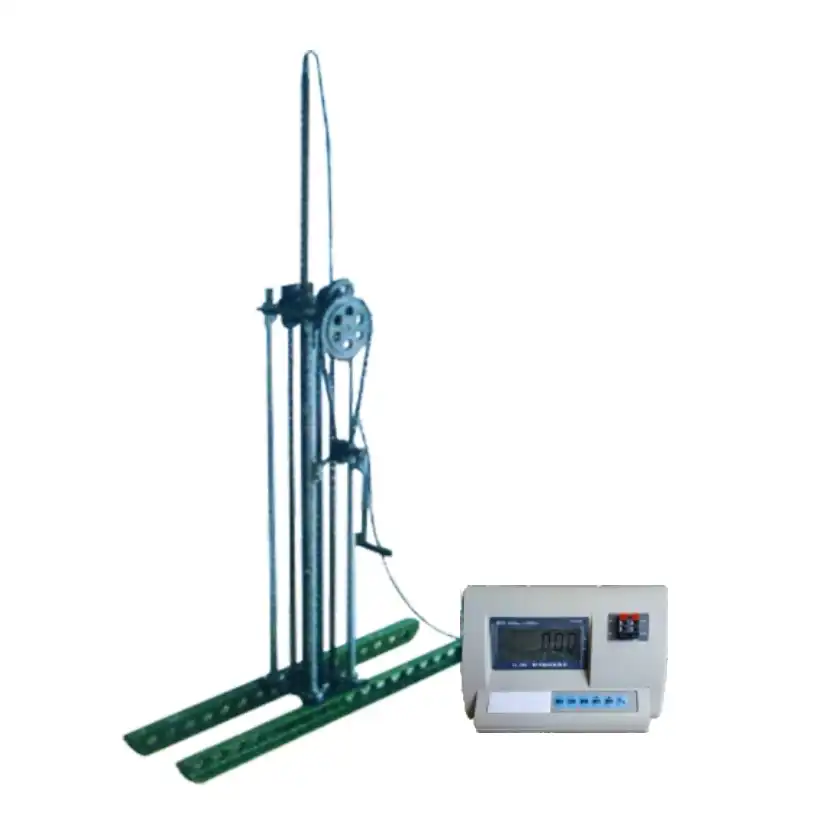

CLD series vane and static penetrometer are simple and light in structure, without power supply, convenient for handling, especially in areas with inconvenient traffic and no power supply It is applicable to soft soil, general cohesive soil and loose to medium dense sand layer, and is currently the most widely used light static cone penetration device in China. This penetrometer rotates the handle manually, drives two pressurized chains to rotate circularly through the speed change of the sprocket and gear, presses the “mountain” shaped plate and the block by the lengthened chain piece pin, and presses the probe into the soil at a penetration rate of 0.8m~1.0m/min. The lifting speed is changed by changing the position of the handle. This machine is equipped with an electric Cross palte probe, which can conduct static penetration test and Cross plate shear test respectively.
Technical specification
Penetration capacity: 20-30KN
Penetration speed: 0.8-1.2m/min
Lifting speed: 4-5m/min
Diameter of probe rod: 25-28mm
Adapt probe: 10cm2
Four-bladed vane probe size: 50X100mm
Weight of main frame: 40kg
Weight of total machine: 180kg.
Static penetration Test:
This penetrometer uses two chains to drive the probe rod of the electrical measuring probe, continuously press it into the soil at a uniform speed, and determine the engineering properties of cohesive soil and sandy soil according to the resistance of the probe.
Electric Four-bladed Vane Test:
This instrument is a dual-purpose instrument. In addition to static penetration test, it can also conduct Electric Four-bladed vane test.
