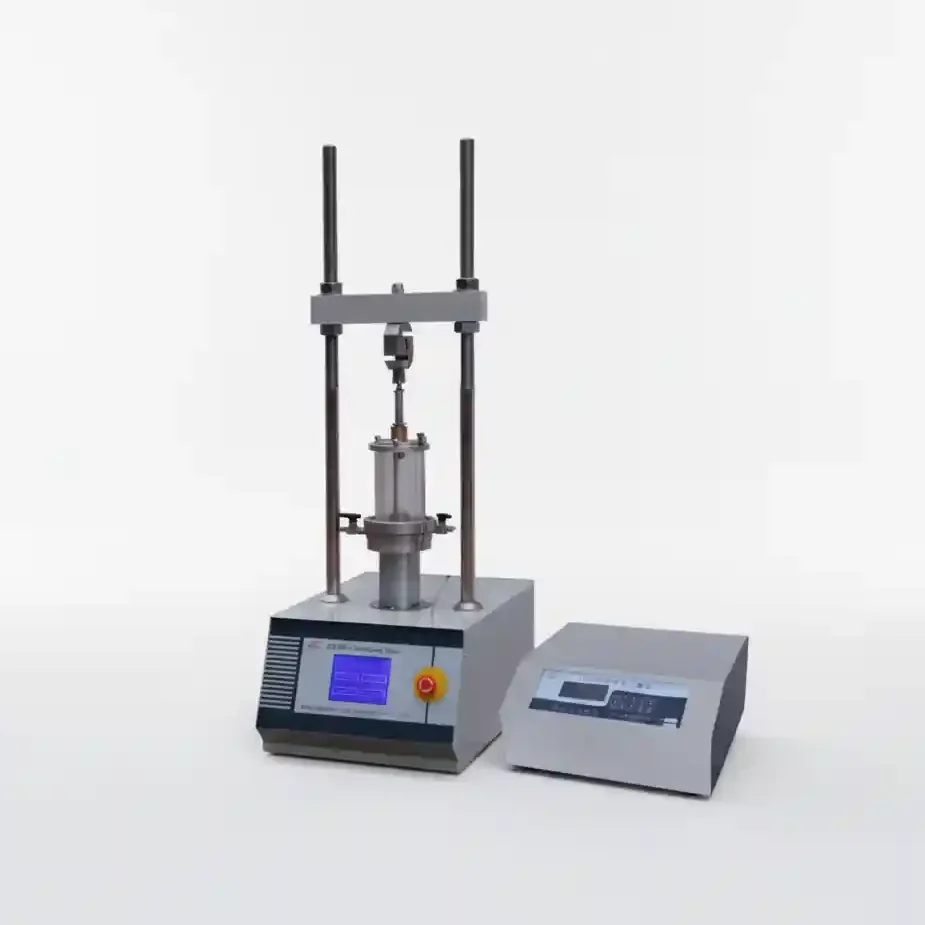

STSZ-ZD Full Automatic Triaxial Test Set

This equipment is mainly used to determine the shearing resistance of the soil to research on the soundness of the soil and supply the data for project and scientific research.

It can do three kinds of tests according to the drainage condition as following:

Shear test without consolidation and without drainage

Shear test with consolidation and without drainage

Shear test with consolidation and with drainage.

分类： 标签：

描述

Application:

Ddetermine the strength and deformation characteristics of the soil specimen.

Perform unconsolidated-undrained shear test(UU), consolidated-unstrained shear test(CU) and consolidated-drained shear test(CD).

Feature:

Computer control, curves and test reports can be printed , data setting of confining pressure and backpressure is by keyboard input.

Elavation of main frame is controlled. Main frame is driven by servo motor, and shearing rate is variable.

Parameters:
1. Axial force: 0-10kN, measurement accuracy: ±1%
2. Shear rate: 0.001-5.000mm/min
3. Specimen size: Φ39.1×80mm
4. Confining pressure: 0-1MPa
5. Backpressure: 0-1MPa
6. Aperture pressure: 0-1MPa
7. Volume change: 0-50ml

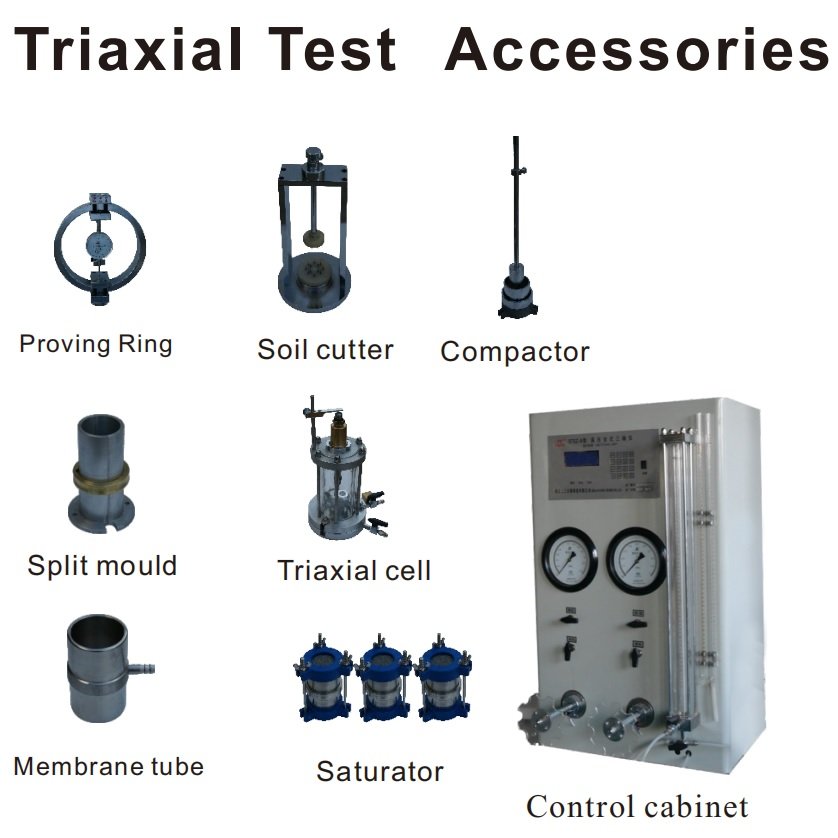

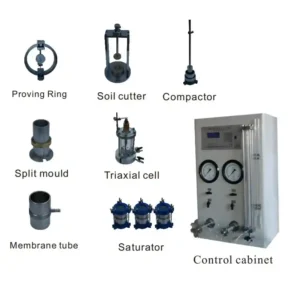

Accessories:
